Octo eyes

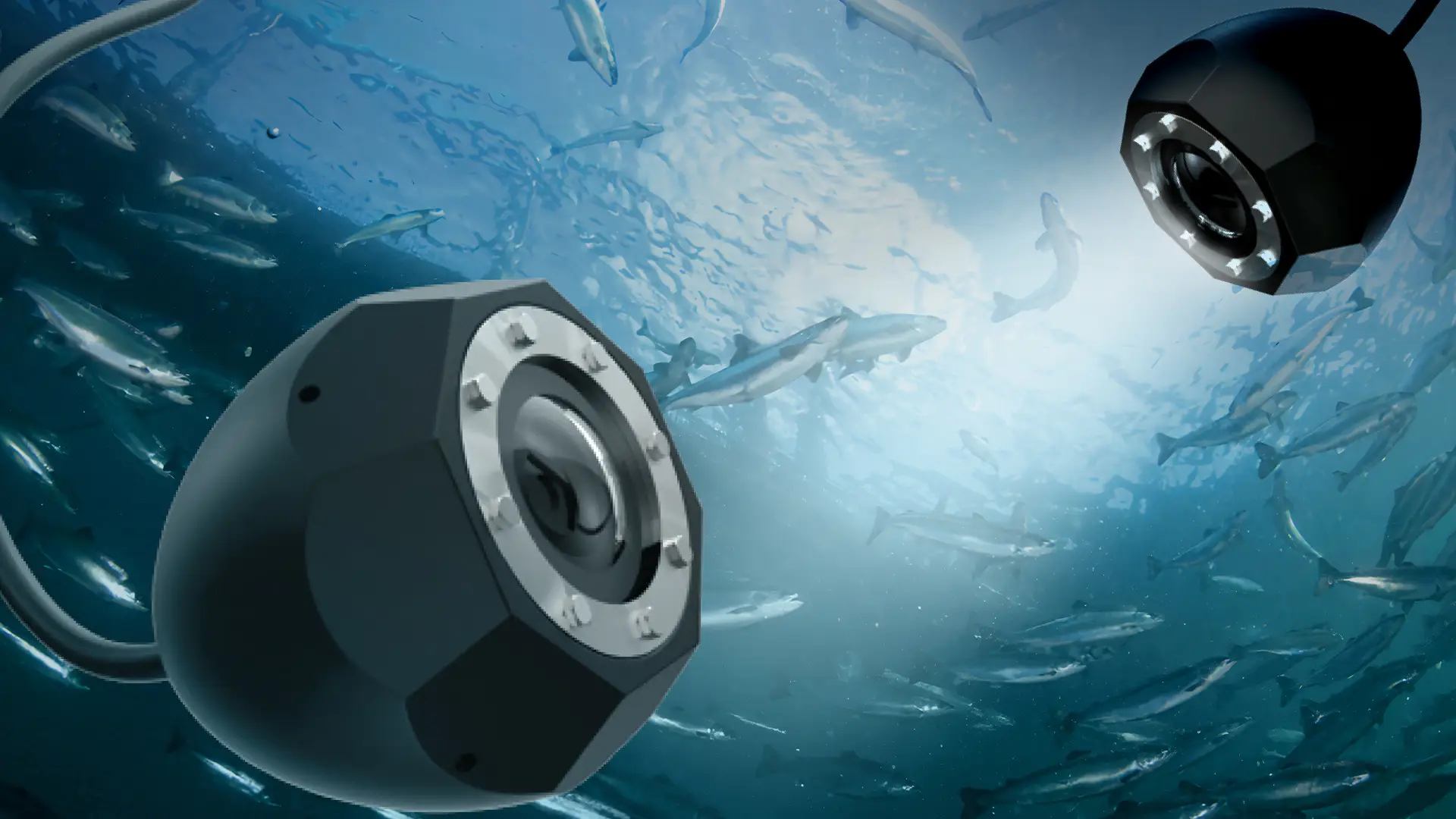

Octo Eye will provide you a monitoring system for the underwater feeding operations and the observation of fish behaviour at the fish farm cages. Our camera is designed to be fixed at the cage nets either upwards, horizontally or downwards directions. Octo eye has a 115 degrees increased field of view and QHD (2560 x 1440) resolution. The barge operator will have a good view and monitoring of larger areas inside the cage with these features of OCTO eye. Octo eye camera’s light sensitivity which is up to 0.028 Lux, the operator will be able to observe the details that were not previously visible in dark and poor light conditions. Thanks to the simplified infrastructure requirements, the power and signal are transferred via the same cable (“Power over Ethernet”) All system units are designed to be highly durable and can be installed even underwater. Octo Eye camera’s low power consumption feature provides an easy integration option to the solar power systems.

Technical specifications

Video signal IP
Resolution 2560×1440
Sensor Type 1/3" progressive scan CMOS
Lens 2.8mm
Viewing angle horizontal 98° vertical 53° diagonal 115°
Light sensitivity 0.028 Lux @ (F2.0, AGC ON)
Power 12 volt dc / PoE
Weight ~ 6000g.
IP protocol IP67, TVS 2000V
Connector Wet-Mate

Other Features

• Long-term durability under water with its robust and waterproof (IP69) structure
• High light sensitivity
• Wide viewing angle
• Low power consumption
