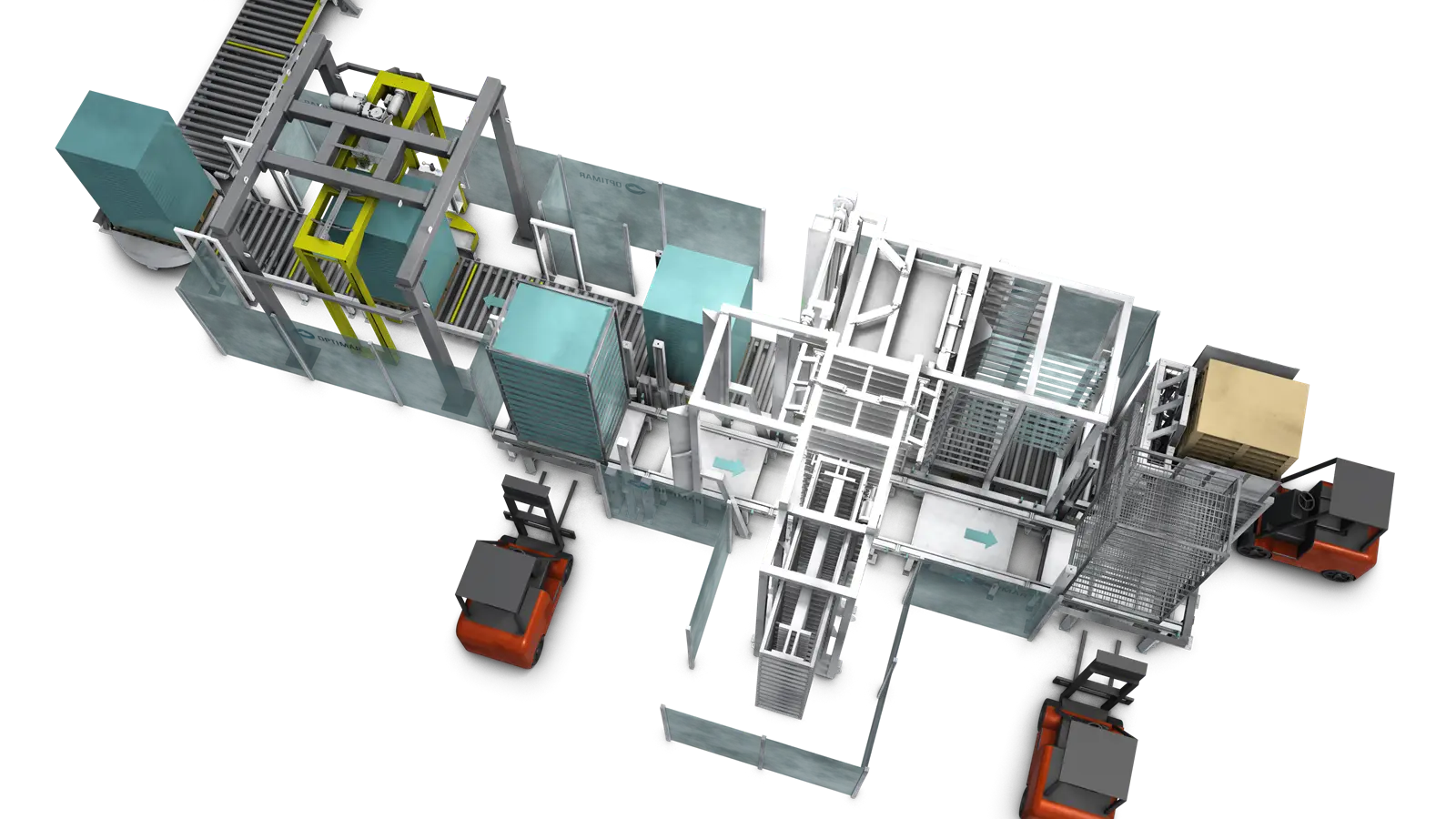

A special product designed for automatic stacking and palletizing of frozen products.
Benefits
- Palletizer is delivered in stainless steel materials.
- Safety fences and safety barriers according to EU regulations.
- Touch screen operated control system.
Specifications
- Number of shelves in racks: Up to 14.
- System capacity: Approx. 60-90 Ton/hour, depending on number of shelves in the freezing rack and number of layers on the pallet.
- The highest capacity is met when there is same number of shelves in racks as number of layers on pallets.
- Pallet size: 1000*1200 mm (US).
- Main power supply: 3x440V, 60Hz or 3x400V, 50Hz; 30 kW.
- Control voltage: 220V AC / 24V DC.
- Air supply: Appr. 200 Nl/min. (7Bar).
